Tech. Specification :

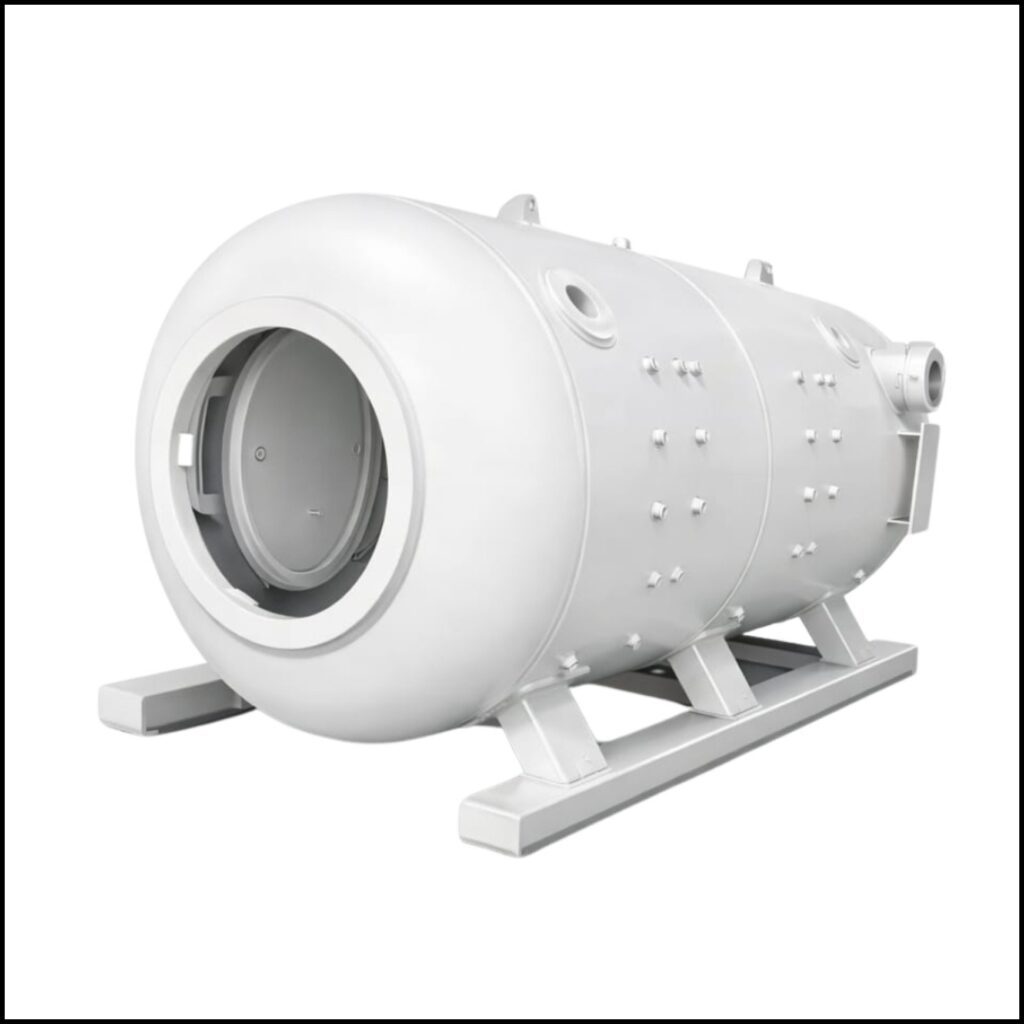

• a) Supply of New 60” Air Decompression Chamber horizontal cylindrical type shell being 1524 ID X 1720 long X 10 mm thk & 1524 ID X 1165 ht X 10 mm thk made out of SA 516 Gr. 70 material.
• b) Dishend: Standard Torispherical dishend will be provided of 1524 ID X 10 mm thk- 2 nos made out of SA 516 Gr. 70 material.
• c) Inner Dishend: Standard Torispherical dishend will be provided of 1524 OD X 10 mm thk made out of SA 516 Gr. 70 material.
• d) View Port: Necessary View Port 190 mm dia – 3 Nos will be provided as per your specification.
• e) Manway: 700 mm ID Manway – 2 nos along with doors hinges will be provided with 1 No door locks.
• f) Medical Lock: Medical Lock 1 nos, 219 mm ID and 356 mm LG will be
  provided along with inner & outer Cover in SS 316. Medical Lock will be
  pressure Cooker type made out of SS 316 Flange welded to the shell.
• g) Coupling (Penetrators): Necessary Coupling (Penetrators) will be provided.
• h) Standoff: Necessary SS Standoff will be provided.
• i) Skid will be provided of 4 nos Legs.
• j) SS 304 Bunk – 2 Nos & SS 304 Chair – 2 Nos.
• k) Floor (Chequer) (Diamond) Plate, Aluminum – 2 Nos.
