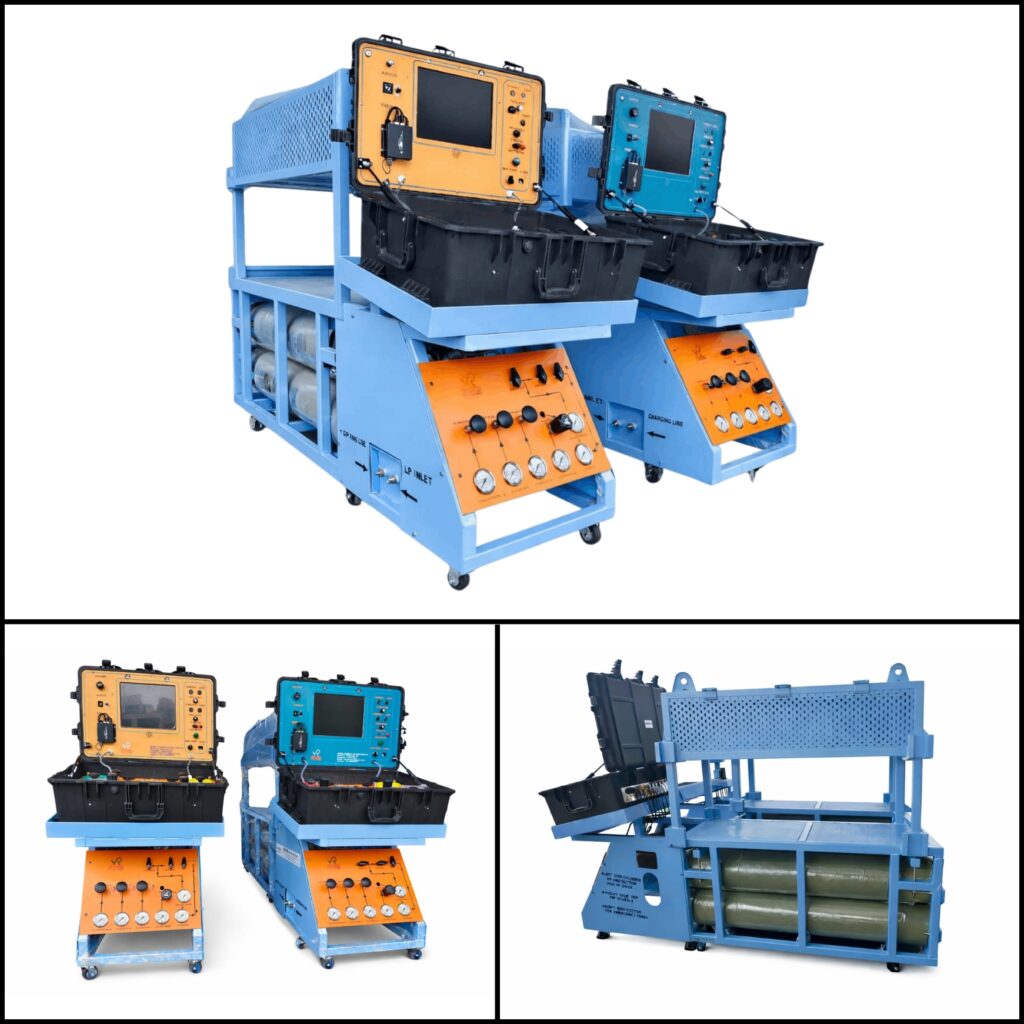

2 DIVER CCTV SRP SET
Introduction:-
• SRP Frame Material : Mild Steel
• SRP Frame Weight : 250kg
• SRP Load Testing Weight : 1500kg
• Paid eye design : DNV 2.7-1
• Design compliant with IMCA guidelines Includes: – D018 (Code of practice for the initial and periodic Examination. Testing, and Certiication of Diving Plant and System)
D040 (Design for Mobile/Portable Surface Oriented
• Complete Certification (load test, calibration, hydro test, Pressure test)
Information :- Emergency panel
Cylinder Charger : HP Charging Valve/Gauge
Regulator : HP Pressure regulator, inlet 6000psi Outlet 400psi
Supplier to Dive Panel : D1/D2 HP Valve/Gauge
Regulator Supply : D1/D2 LP Valve / Gauge
Connections : Valve/fittings/piping from cylinder to panel
Optional Extras
Wheels : Bolted wheels for easy transport
DC Power : Battery bank 12v complete with fast charger in water proof junction box and battery leads
Technical Speciication for Breathing
Air Cylinder
• Cylinder Capacity: 50 ltrs.
• Working Pressure: 204 kgf/cm²
• Hydrostatic Test Pressure: 340 kgf/cm²
• Nominal Length: 1450 mm
• Outside Diameter: 232 mm
• Cylinder Weight (Empty):54 kgs
• Bend Test: 182 without cracking
• Yield Pressure: 500 kgf/cm²
• Burst Test: 560 kgf/cm²
• Heat Treatment: Hardened, Quenched & Temperd
• Painting in Accordance with gas cylinder Rule 2046 of
