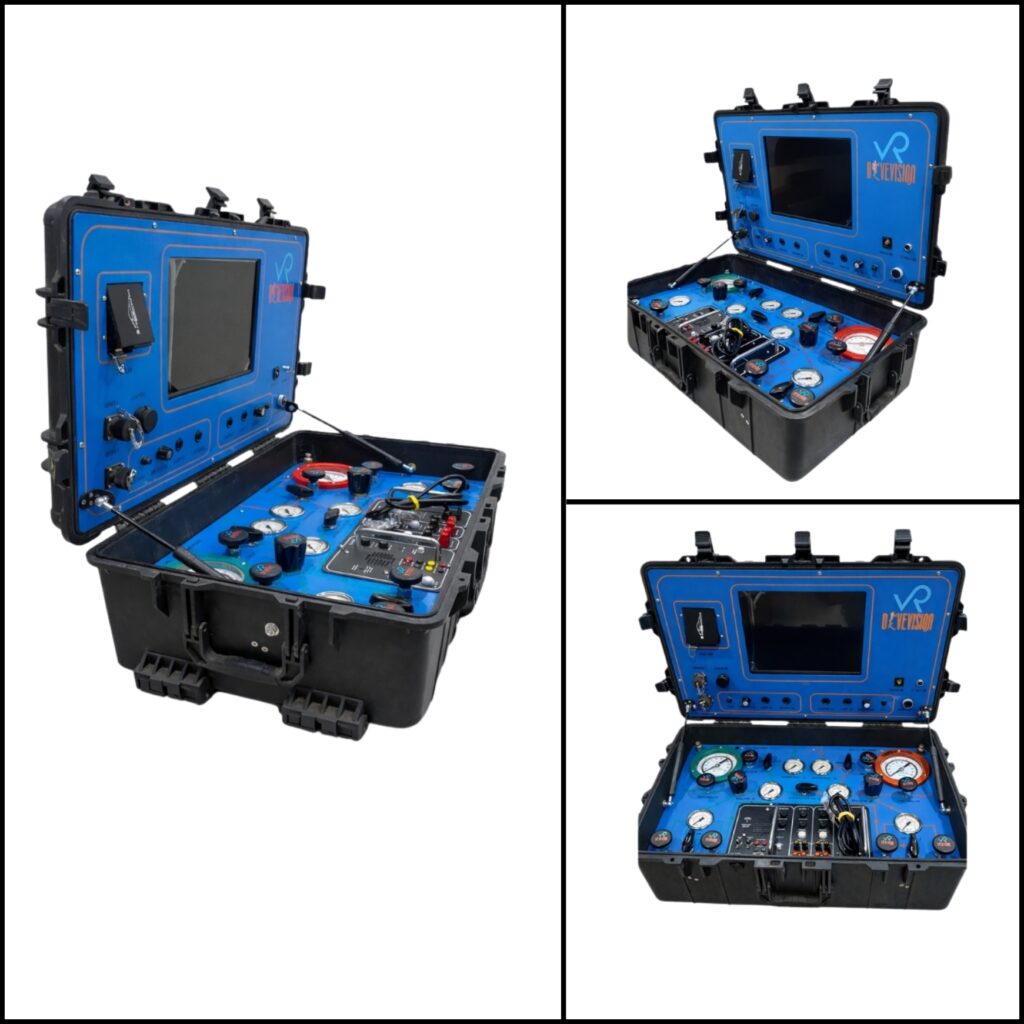

2 DIVER AIR PANEL WITH CCTV
(Model: VRD-2DCCTVAP-24)
Reliable. Rugged. Real-Time.
The Two Diver Air Panel is a compact, field-ready two diver CCTV and dive control panel engineered for professional underwater operations. Designed for use in offshore, commercial diving, and inspection environments, this all-in-one system combines real-time video monitoring, audio communication, and pneumo depth control for enhanced diver safety and surface supervision.
Panel Features:
- Dual Diver Support
- Camera: Diver 1 & Diver 2
- Light & Controller: Independent controls for both divers
- Amphenol Ports: 2 × 8-pin video/light connectors
- Power & Monitoring:
- DC Port: 1 × 12V output
- Volt Meter: 1
- Main Power Switch: 1
- USB Slots: 2 (for data backup & external mouse)
- Audio Jack: 1 (for audio recording)
Monitor & System Specifications:
- Screen: 15″ LED Display
- Storage: Built-in 500 GB Hard Drive
- Camera Feed: Dual 3MP HD cameras (1080p resolution)
- Lighting Output: 30W – 24V (DC), 2000 lumens
- DVR: 4-Channel Digital Video Recorder
- External Access: 2 USB Ports
- Video Interface: 8-pin Amphenol connectors
- Power Supply:
- Primary: 220V AC
- Secondary: 12V DC (backup ready)
SRP Integration (Surface Recording Panel):
The VR-2DCCTVAP-24 is fully compatible with SRP systems, allowing seamless connection to external recording, display, and analysis tools. This integration enables:
- Continuous surface-based video/audio recording
- Time-stamped data logging for compliance and traceability
- Live feed projection for dive supervisors or client reps
- Playback and review of dive footage for NDT/CVI documentation
SRP compatibility ensures the panel can scale from standalone operations to full inspection-class projects, making it ideal for both fieldwork and client reporting.
Engineered for Harsh Environments:
- Rugged waterproof and shockproof casing
- Field-portable design with quick setup
