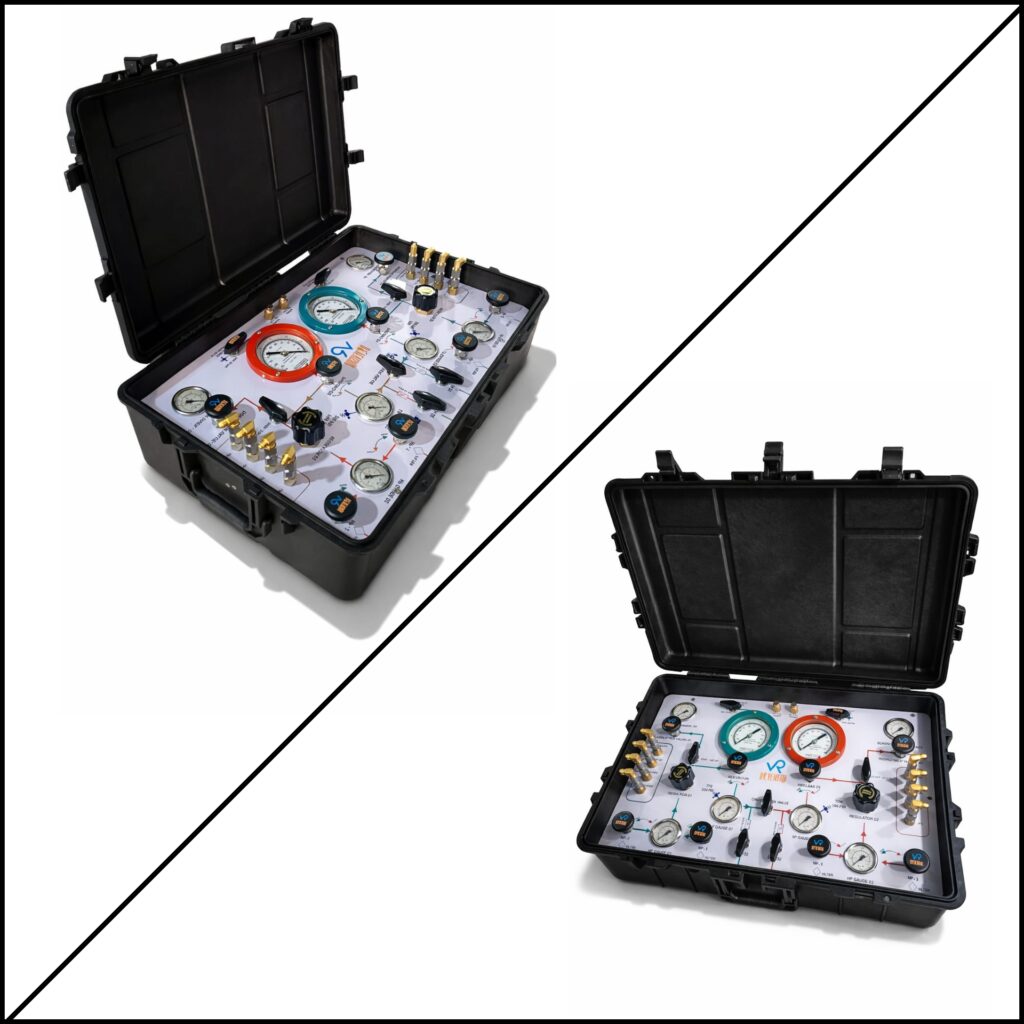

2 DIVER PORTABLE AIR PANEL
The Air Control System is a lightweight, portable control box for use in Surface Supplied air diving operations. The controls is also available without communications. The air supply can be from either a low pressure compressor or high-pressure cylinders. The controls adjustable first stage regulator reduces the high-pressure air and supplies low pressure through the umbilical to the divers breathing system. A low pressure air supply fitting allows for a L.P. compressor to be used as the primary air source.
- Design compliant with IMCA guidelines Includes: – D018 (Code of practice for the initial and periodic Examination. Testing, and Certification of Diving Plant and System) D040 (Design for Mobile/Portable Surface Oriented
- Complete certification (load test, calibration, hydro test, Pressure test)
Dimension : L X 29″, W X 19″, H X 12″
Weight including panel : 65kg
> Diver 1 and Diver 2 depth gauge with calibration point (6” inch) 250 FSW
> Depth gauge accuracy 0.25%
> Tescom Regulator Diver 1 and Diver 2
> HP Gauge 2.5” inch 400 Kg
> LP Gauge 2.5” inch 28kg
> Diver Hose fitting 6 Jic
> Pressure Hose fitting 4 Jic
> 4 PRV (Pressure Relief Valve)
> 4 NRV (Non Return Valve)
> Copper Tubing
> All External & Internal Fitting in Brass
> Pelican box 1650
