OUR PRODUCT
SRP (Scuba Replacement Package) FULL SET
Introduction:-
• SRP Frame Material : Mild Steel
• SRP Frame Weight : 250kg
• SRP Load Testing Weight : 1500kg
• Paid eye design : DNV 2.7-1
• Design compliant with IMCA guidelines Includes: – D018 (Code of practice for the initial and periodic Examination. Testing, and Certiication of Diving Plant and System)
D040 (Design for Mobile/Portable Surface Oriented
• Complete certiication (load test, calibration, hydro test, Pressure test)
2 DIVER AIR PANEL WITH CCTV
Reliable. Rugged. Real-Time.
The Two Diver Air Panel is a compact, field-ready two diver CCTV and dive control panel engineered for professional underwater operations. Designed for use in offshore, commercial diving, and inspection environments, this all-in-one system combines real-time video monitoring, audio communication, and pneumo depth control for enhanced diver safety and surface supervision.
Panel Features:
- Dual Diver Support
- Camera: Diver 1 & Diver 2
- Light & Controller: Independent controls for both divers
- Amphenol Ports: 2 × 8-pin video/light connectors

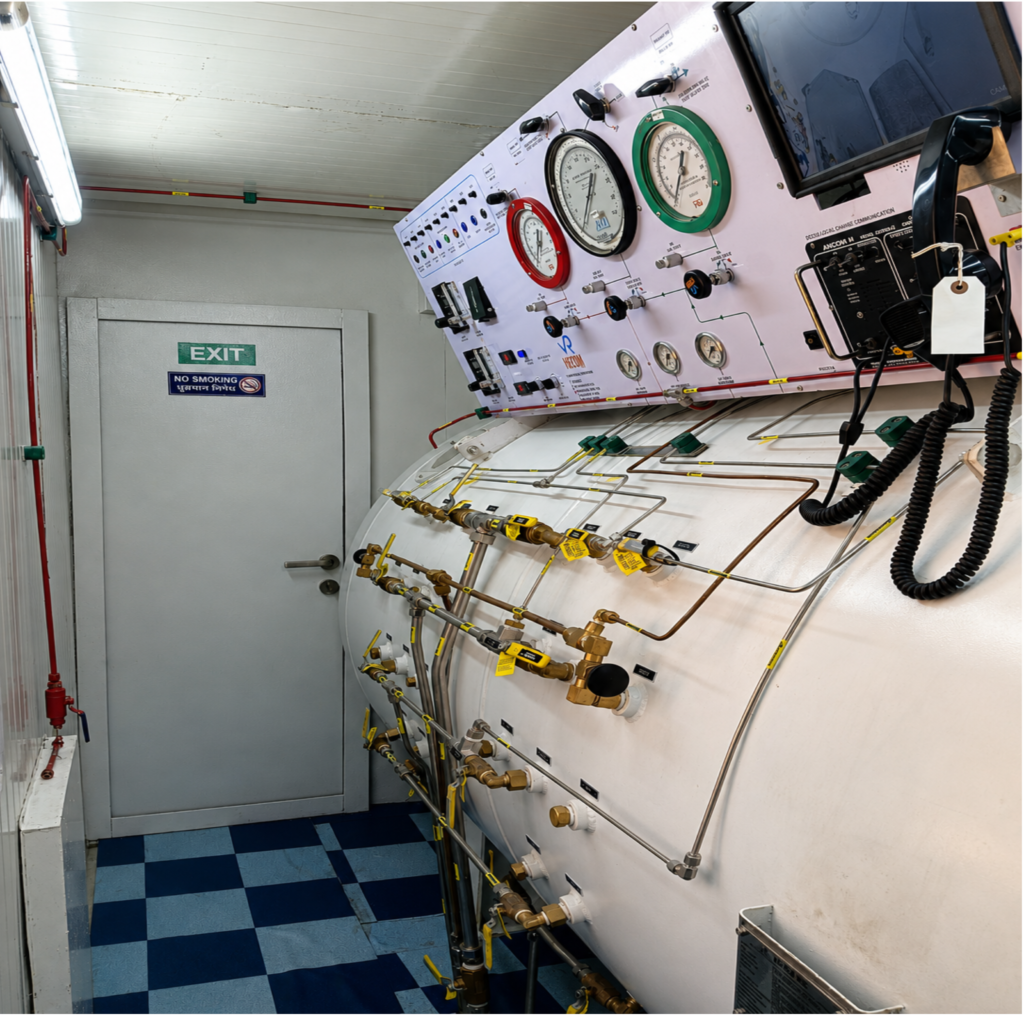

DDC SHELL (Air Decompression Chamber)
Tech. Specification :
- a) Supply of New 60” Air Decompression Chamber horizontal cylindrical type shell being 1524 ID X 1720 long X 10 mm thk & 1524 ID X 1165 ht X 10 mm thk made out of SA 516 Gr. 70 material.
- b) Dishend: Standard Torispherical dishend will be provided of 1524 ID X 10 mm thk- 2 nos made out of SA 516 Gr. 70 material.
- c) Inner Dishend: Standard Torispherical dishend will be provided of 1524 OD X 10 mm thk made out of SA 516 Gr. 70 material.
- d) View Port: Necessary View Port 190 mm dia – 3 Nos will be provided as per your specification.
- e) Manway: 700 mm ID Manway – 2 nos along with doors hinges will be provided with 1 No door locks.
2 DIVER PORTABLE AIR PANEL
The Air Control System is a lightweight, portable control box for use in Surface Supplied air diving operations. The controls is also available without communications. The air supply can be from either a low pressure compressor or high-pressure cylinders. The controls adjustable first stage regulator reduces the high-pressure air and supplies low pressure through the umbilical to the divers breathing system. A low pressure air supply fitting allows for a L.P. compressor to be used as the primary air source.
- Design compliant with IMCA guidelines Includes: – D018 (Code of practice for the initial and periodic Examination. Testing, and Certification of Diving Plant and System) D040 (Design for Mobile/Portable Surface Oriented
- Complete certification (load test, calibration, hydro test, Pressure test)
Dimension : L X 29″, W X 19″, H X 12″
Weight including panel : 65kg

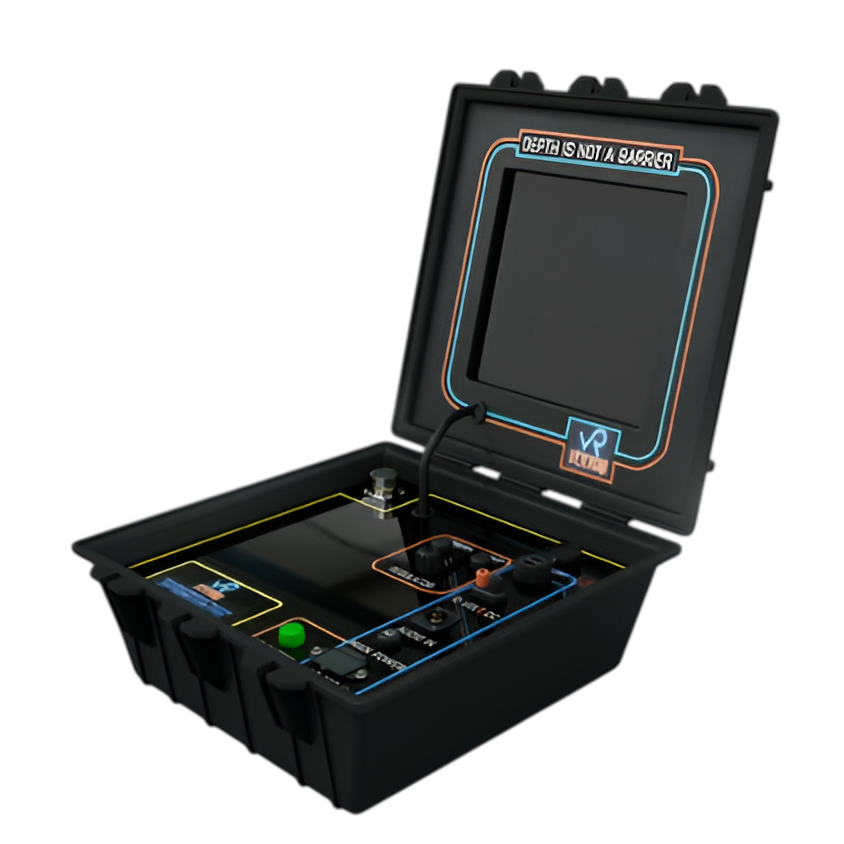

Single Diver CCTV Unit
This is a streamlined single diver CCTV and audio control panel, purpose-built for compact operations, inspections, and light commercial diving work. Housed in a rugged waterproof case, it delivers high-definition video monitoring, two-way communication, and direct diver light control — all in one easy-to-carry unit.
Core Features:
Single Diver Integration:
- Dedicated ports for video, audio, and light control
- Simple interface for efficient solo dive operations
Built-In Monitor:
- 14″ LED screen for live underwater visuals
- Real-time video feedback for inspections, safety checks, and documentation

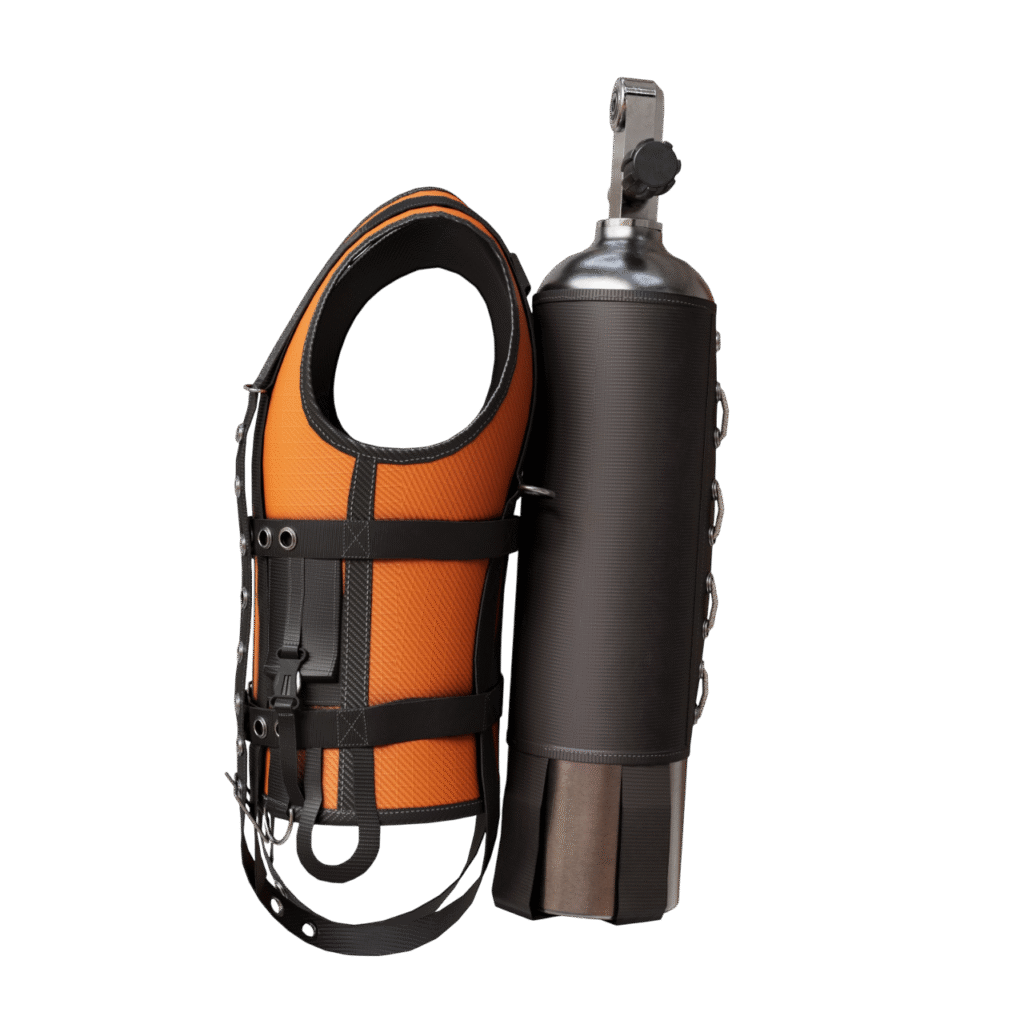

SCUBA Jacket with Cylinder Holding pocket
The Jacket is a rugged, diver-friendly with a secure cylinder pocket, it allows easy mounting of a scuba cylinder, ensuring safety and quick access when needed.
Key Features:
- Heavy-duty Jacket with adjustable straps
- Integrated scuba cylinder pocket with securing strap
- Compatible with standard bailout cylinders
- Built for comfort, mobility, and quick deployment
UNDERWATER DIVING HELMET LIGHT
Designed for professional and commercial diving operations, this Underwater Diving Helmet Light delivers powerful and reliable illumination in low-visibility underwater environments. Mounted directly on the diving helmet, it ensures clear visibility, improved safety, and enhanced operational efficiency for divers.
Built with a rugged, waterproof housing, this light is engineered to withstand extreme underwater conditions while providing consistent performance at depth. Its focused beam helps divers clearly inspect work areas, structures, and surroundings during underwater tasks.
Available in multiple light colors, allowing divers to choose the most suitable option based on visibility requirements and working conditions.

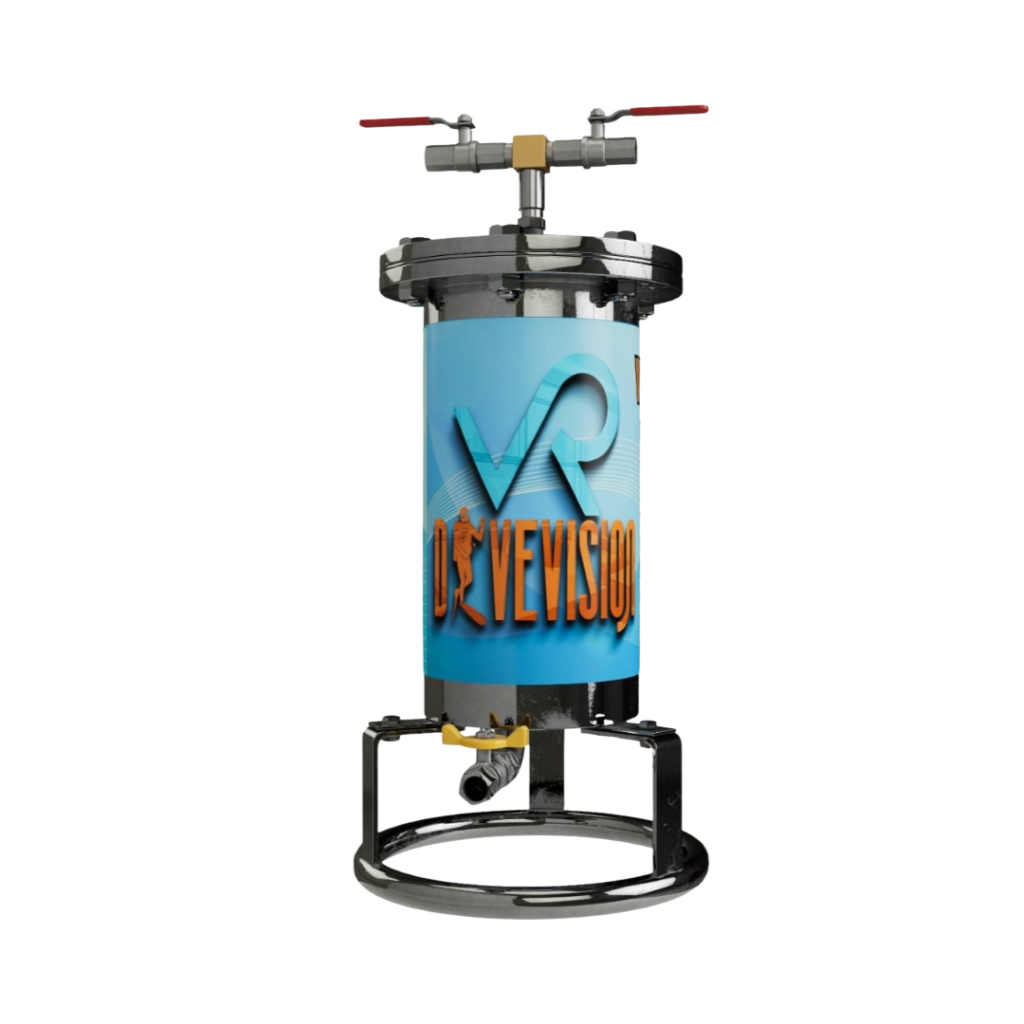

DIVING AIR FILTER SYSTEM
Reliable & High-Performance Air Purification for Professional Diving
This diving air filter is specially designed to deliver clean, dry, and breathable air for professional and commercial diving applications. Manufactured with high-quality materials and tested under strict conditions, this filter ensures maximum safety, durability, and consistent performance in demanding underwater environments.
The filter body is made from SS 304 stainless steel, offering excellent corrosion resistance and long service life. It is ISO approved and engineered to operate efficiently under high pressure, making it ideal for diving compressors and air supply systems.

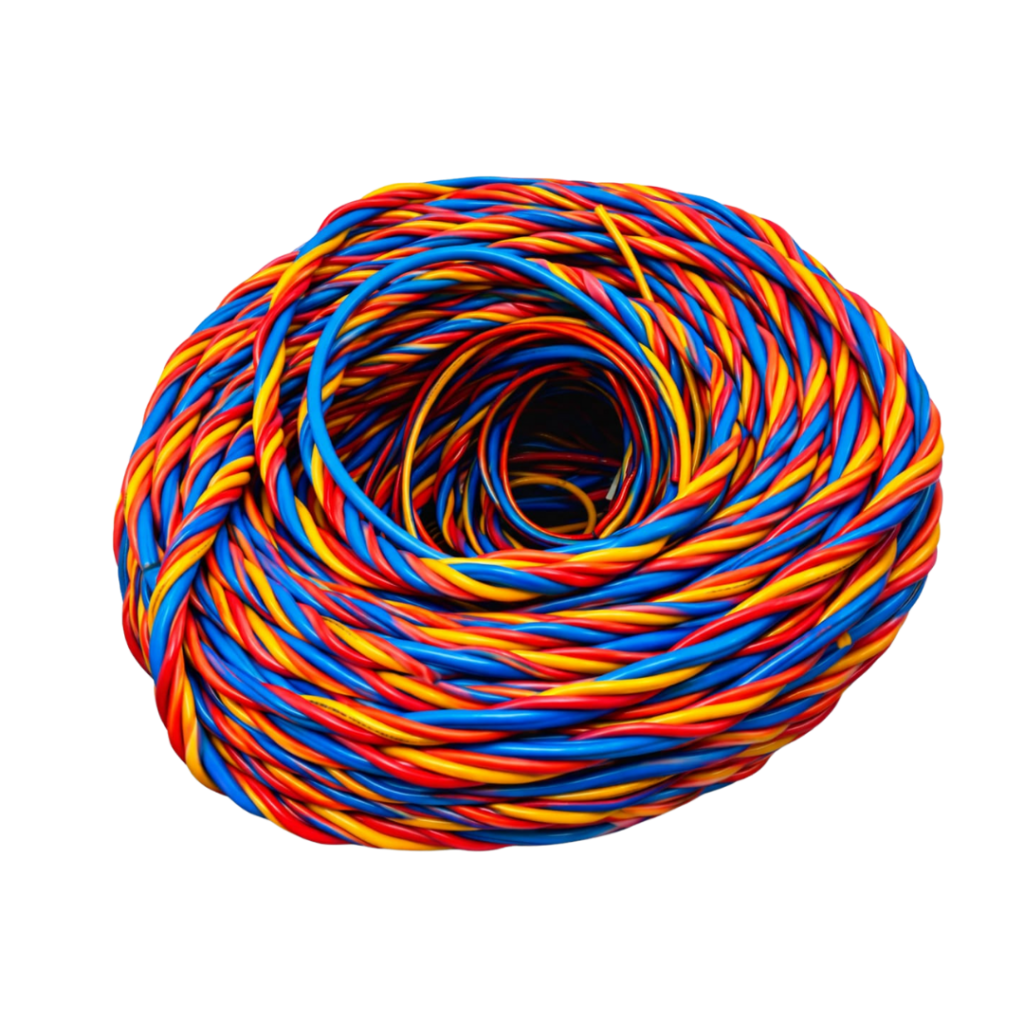

4-Element Diving Umbilical
The 4-Element Diving Umbilical is the diver’s main lifeline, constructed by combining four essential elements into a single integrated umbilical, specially designed for safe and reliable surface-supplied diving operations. It ensures smooth underwater performance and maximum diver safety.
Integrated Elements
Pneumo Hose – Used for accurate depth measurement and continuous diver monitoring from the surface.
Breathing Air Hose – Supplies clean, continuous breathing air from the surface air panel to the diver.
Communication Cable – Provides clear two-way voice communication between the diver and surface team.
Video / Light Cable – Supports underwater camera and lighting systems for live monitoring and recording.

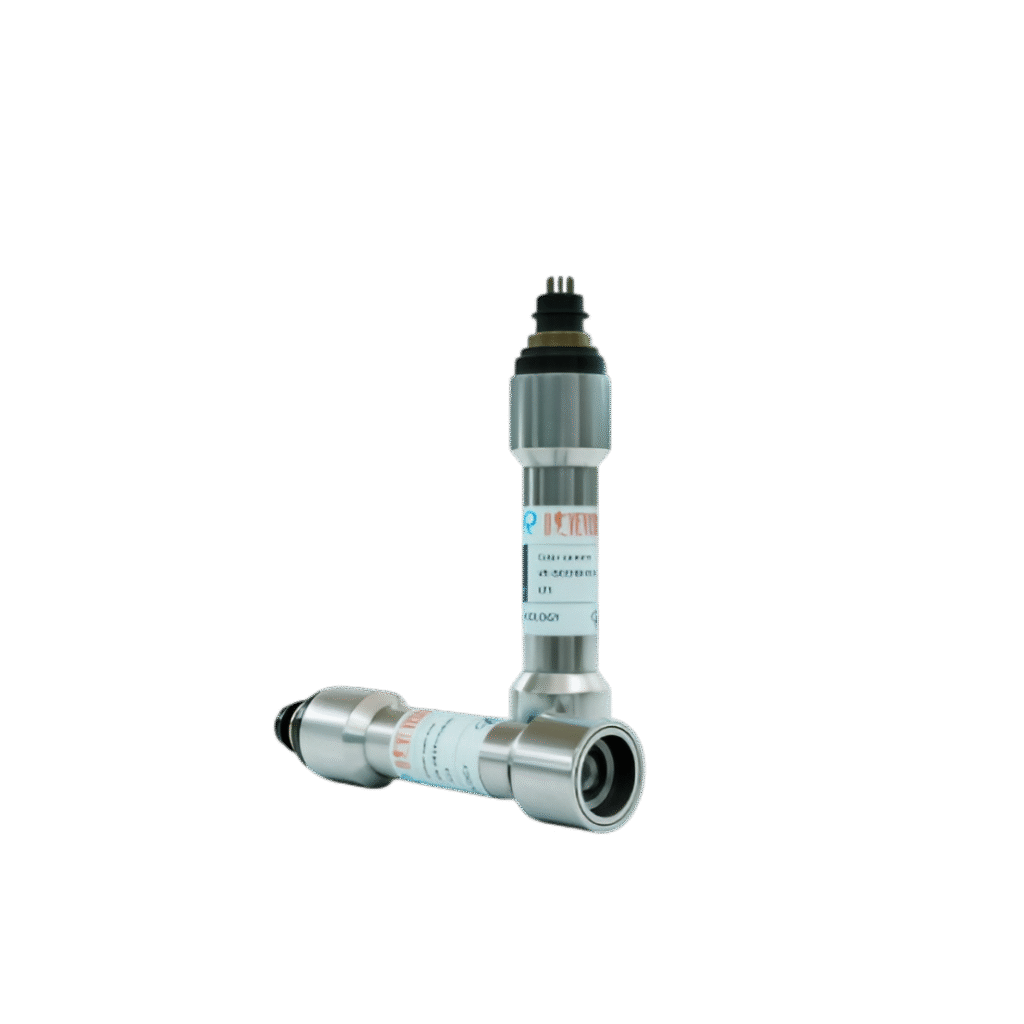

Underwater Camera 5 Pin
This is a high-performance underwater inspection camera designed to deliver sharp, wide-angle footage in even the most challenging diving conditions. Compact and durable, it’s built for commercial divers, ROV operators, and inspection teams who demand precision and reliability at depth.
Key Features:
- Full HD resolution (up to 1933×1088)
- Fixed 3.6mm lens with 70° field of view
- Compact & durable Delrin housing
- Depth rated to 150 meters
- Low-light performance: 1.3 lux @ F2.0
- Wide voltage input: 12–24V DC
- Power: 90mA @ 12V
- Standard connector: OTI XSK-5-BCL
OXYGEN QUAD CYLINDER BANK
The Oxygen Quad is a high-capacity gas storage system designed for safe, efficient, and organized storage of medical or industrial oxygen.
Technical specification
Cylinder Capacity: 50 ltrs.
• Working Pressure: 204 kgf/cm²
• Hydrostatic Test Pressure: 340 kgf/cm²
• Nominal Length: 1450 mm
• Outside Diameter: 232 mm
• Cylinder Weight (Empty):54 kgs
• Bend Test: 182 without cracking
• Yield Pressure: 500 kgf/cm²
• Burst Test: 560 kgf/cm²
• Heat Treatment: Hardened, Quenched & Temperd
• Painting in Accordance with gas cylinder
Call Us Now!
+91 9625632271
Frequently Asked Questions
Yes, all our equipment is IMCA-compliant and tested to withstand harsh marine environments.
Absolutely. We design and manufacture custom-built solutions tailored to your operational needs.
Our team ensures 24/7 expert support and fast response to keep your operations running smoothly.
